Silent Install Oracle 11gR2

This article describe how to silent install the Oracle 11gR2.

Install Oracle Linux on Virtual Box
Install Oracle preinstall package
Create software installation folder
Configure User environment
Create oraInst.loc file
Prepare the response file for install Oracle software only
Create the Listener
Create database using DBCA
Configure Oracle database auto start after host reboot

Software

Oracle Linux 6.3
Virtual Box4.2.6
oracle-rdbms-server-11gR2-preinstall
Oracle 11gR2( 11.2.0.3)

Install Oracle Linux on Virtual Box

Refer here.

Install Oracle preinstall package

The oracle preinstall package used to be call ‘”Oracle Validate” in 10g. This package would also update the kernel parameter as Oracle suggest. Before it modify the parameter, it would backup the old one to the /etc/sysctl.conf.orabackup. For kernel parameter, you can refer here.

 yum install oracle-rdbms-server-11gR2-preinstall

Refer here for the Oracle Requirement and here for how to fix kernel parameters. oracle-rdbms-server-11gR2-preinstall would take care of the changes, just double check and adjust it if necessary.

Create Required Group and User

The oracle-rdbms-server-11gR2-preinstall would create oracle user, add oinstall and dba group. Also make the oracle user as part of member of the group.

We also need to reset the oracle user password.

passwd oracle

Create Software installation folders

/u01/app/oracle –> for $ORACLE_BASE for Oracle Database instance
/u01/app/oracle/product/11.2.0 –> for $ORACLE_HOME

mkdir -p /u01/app/oracle/product/11.2.0

chown -R oracle:oinstall /u01/app

chown –R /u01/app/oracle

chmod 775 /u01/app

Configure User environment

Update ~oracle/,bash_profile

TMP=/tmp; export TMP

TMPDIR=$TMP; export TMPDIR

ORACLE_HOSTNAME=panda1.localdomain; export ORACLE_HOSTNAME

ORACLE_BASE=/u01/app/oracle; export ORACLE_BASE

ORACLE_HOME=/u01/app/oracle/product/11.2.0 export ORACLE_HOME

ORACLE_SID=oracledb1; export ORACLE_SID

ORACLE_UNQNAME=oracledb1; export ORACLE_UNQNAME

PATH=$ORACLE_HOME/bin:$PATH; export PATH

Creating the oraInst.loc File

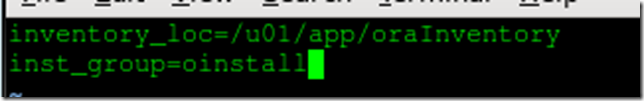

Create the /etc/oraInst.loc as below and chage the permission and ownership.

inventory_loc=/u01/app/oraInventory

inst_group=oinstall

chown oracle:oinstall oraInst.loc

chmod 664 oraInst.loc

Prepare the responds file: Oracle Software Only

The sample response file can be found under Oracle installation media “database/response ”

dbca.rsp : Silent install for the Oracle database ( for DBCA)
db_install.rsp: silent install for the Oracle Software.
netca.rsp: Silent install for Oracle Net Configuration Assistant

Here is the example of db_install.rsp.

Even many of the parameters are empty, but if we don’t include in the rsp file, we would get the error like:

oracle.install.responseFileVersion=/oracle/install/rspfmt_dbinstall_response_schema_v11_2_0

oracle.install.option=INSTALL_DB_SWONLY

ORACLE_HOSTNAME=panda2.localdomain

UNIX_GROUP_NAME=oinstall

INVENTORY_LOCATION=/u01/app/oraInventory

SELECTED_LANGUAGES=en

ORACLE_HOME=/u01/app/oracle/product/11.2.0

ORACLE_BASE=/u01/app/oracle

oracle.install.db.InstallEdition=EE

oracle.install.db.EEOptionsSelection=false

oracle.install.db.optionalComponents=oracle.rdbms.partitioning:11.2.0.3.0,oracle.oraolap:11.2.0.3.0,oracle.rdbms.dm:11.2.0.3.0,oracle.rdbms.dv:11.2.0.3.0,oracle.rdbms.lbac:11.2.0.3.0,oracle.rdbms.rat:11.2.0.3.0

oracle.install.db.DBA_GROUP=dba

oracle.install.db.OPER_GROUP=dba

oracle.install.db.CLUSTER_NODES=

oracle.install.db.isRACOneInstall=

oracle.install.db.racOneServiceName=

oracle.install.db.config.starterdb.type=

oracle.install.db.config.starterdb.globalDBName=

oracle.install.db.config.starterdb.SID=

oracle.install.db.config.starterdb.characterSet=WE8MSWIN1252

oracle.install.db.config.starterdb.memoryOption=

oracle.install.db.config.starterdb.memoryLimit=

oracle.install.db.config.starterdb.installExampleSchemas=false

oracle.install.db.config.starterdb.enableSecuritySettings=true

oracle.install.db.config.starterdb.password.ALL=

oracle.install.db.config.starterdb.password.SYS=

oracle.install.db.config.starterdb.password.SYSTEM=

oracle.install.db.config.starterdb.password.SYSMAN=

oracle.install.db.config.starterdb.password.DBSNMP=

oracle.install.db.config.starterdb.control=DB_CONTROL

oracle.install.db.config.starterdb.gridcontrol.gridControlServiceURL=

oracle.install.db.config.starterdb.automatedBackup.enable=false

oracle.install.db.config.starterdb.automatedBackup.osuid=

oracle.install.db.config.starterdb.automatedBackup.ospwd=

oracle.install.db.config.starterdb.storageType=

oracle.install.db.config.starterdb.fileSystemStorage.dataLocation=

oracle.install.db.config.starterdb.fileSystemStorage.recoveryLocation=

oracle.install.db.config.asm.diskGroup=

oracle.install.db.config.asm.ASMSNMPPassword=

SECURITY_UPDATES_VIA_MYORACLESUPPORT=false

DECLINE_SECURITY_UPDATES=true

PROXY_HOST=

PROXY_PORT=

PROXY_USER=

PROXY_PWD=

PROXY_REALM=

COLLECTOR_SUPPORTHUB_URL=

oracle.installer.autoupdates.option=

oracle.installer.autoupdates.downloadUpdatesLoc=

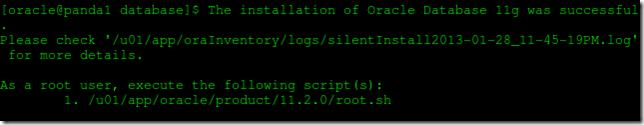

./runInstaller -silent -responseFile /home/oracle/db_install.rsp

Create the Listener

Create the $ORACLE_HOME/network/admin/listener.ora with below information

LISTENER_oracledb1 =

  (DESCRIPTION_LIST =

    (DESCRIPTION =

      (ADDRESS = (PROTOCOL = TCP)(HOST = panda1.localdomain)(PORT = 7001))

      (ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC7001))

ADR_BASE_LISTENER_oracledb1 = /u01/app/oracle

Then start the listener via

lsnrctl start LISTENER_ORACLEDB1

Alternatively, we can use netca to create the listener. Please refer here for more detail.

Create database with DBCA using responds file

Since I am using the named listener with non default port, I have to create the $ORACLE_HOME/network/admin/tnsname.ora

LISTENER_ORACLEDB1 =

  (ADDRESS = (PROTOCOL = TCP)(HOST = panda1.localdomain)(PORT = 7001))

Please refer here for how to use DBCA to create the Database.

Configure auto start Oracle after host reboot

Please refer here for more detail.

Reference

http://docs.oracle.com/cd/E11882_01/install.112/e16763/app_nonint.htm
